ZB4BW14S

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24326

In Stock
Last updated: 2025/4/20
View Specifications

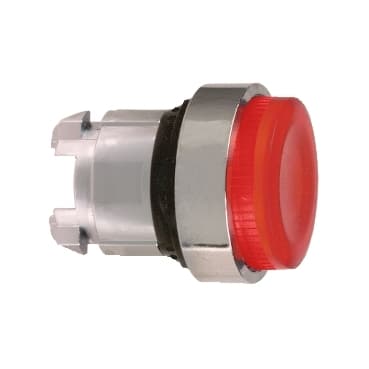

schneider ZB4BW14S

Selling Points

  • 1High-quality industrial component designed for reliable and efficient control applications.
  • 222mm size conforms to industry standards, ensuring compatibility with various panels and control setups.
  • 3Vibrant red illumination enhances visibility, promoting safety and efficiency in industrial settings.
  • 4Durable materials and user-friendly design make it ideal for a range of industrial applications.
  • 5Built to withstand harsh conditions, meeting the demands of industrial electrical systems.
Product Details
ZB4BW14S
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated push-button
Device short name
ZB4
Product Compatibility
BA 9s
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Red projecting, unmarked
Operator additional information
With grooved lens
Environmental characteristic
High ambient lighting environment
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.3 in (32 mm)
Net Weight
0.060 lb(US) (0.027 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Electrical composition code
M7 6 single front mounting BA 9s<br />M8 6 single and double front mounting BA 9s<br />M9 2 single front mounting BA 9s and transformer
Device presentation
Basic sub-assemblies
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…131 °F (-40…55 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to EN 50102
Standards
EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1
Product Certifications
BV<br />DNV<br />LROS (Lloyds register of shipping)<br />CSA<br />UL Listed<br />GL
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
