Product Model

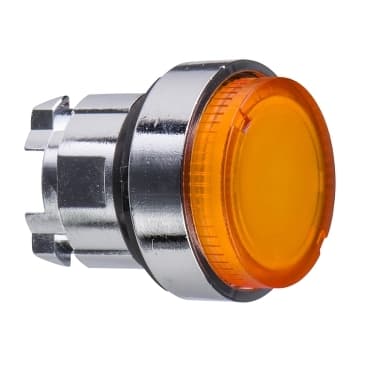

ZB4BW15
Selling Points
- 1High-Impact Resistance: Designed with a chromium-plated metal bezel for high impact and vibration resistance.
- 2BA9s Compatibility: Compatible with BA9s bulbs, ensuring reliable operation in various lighting conditions.
- 310 Million Cycle Durability: Built to withstand up to 10 million cycles, ensuring long-lasting performance.
- 4Orange Projecting Operator: Features an orange projecting, unmarked operator with a plain lens for clear visibility.
- 5Robust Mechanical Design: Meets IP degree of protection standards and resists high-pressure washers up to 7,000,000 Pa at 55°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB4 | Product Compatibility | BA 9s |
Bezel material | Chromium plated metal | Head type | Standard |
Mounting diameter | 0.9 in (22.5 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Orange projecting, unmarked | Operator additional information | With plain lens |
cap/operator or lens colour | Orange | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.3 in (32 mm) |
Net Weight | 0.062 lb(US) (0.028 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Mechanical durability | 10000000 cycles | Electrical composition code | M7 6 single front mounting BA 9s<br />M8 6 single and double front mounting BA 9s<br />M9 2 single front mounting BA 9s and transformer |
Device presentation | Basic sub-assemblies | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 62262 |
Standards | JIS C8201-5-1<br />IEC 60947-5-4<br />IEC 60947-1<br />CSA C22.2 No 14<br />UL 508<br />IEC 60947-5-1<br />IEC 60947-5-5<br />JIS C8201-1 | Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
