ZB4BW343S7

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24493

In Stock
Last updated: 2025/4/21
View Specifications

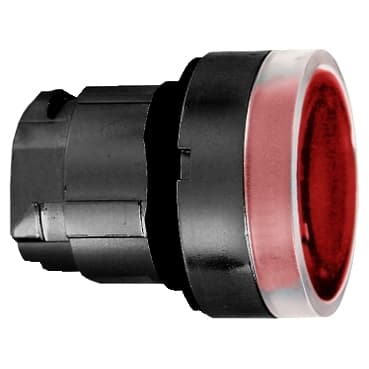

schneider ZB4BW343S7

Selling Points

  • 1Highly Durable: Withstands 5 million cycles and is resistant to high pressure washers.
  • 2IP66 Rating: Dust and water-resistant, ensuring reliable operation in harsh environments.
  • 3Easy Installation: Snap-fit assembly makes it simple to install and replace on compatible units.
  • 4Versatile Interface: Compatible with the Harmony XB4 series switches, offering a versatile control solution.
  • 5Bright Illumination: Protected LED ensures high brightness for easy identification, even in brightly lit environments.
Product Details
ZB4BW343S7
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated push-button
Device short name
ZB4
Product Compatibility
Integral LED
Bezel material
Black metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Red flush, unmarked
Operator additional information
With grooved lens
Environmental characteristic
High ambient lighting environment
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.057 lb(US) (0.026 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED
Device presentation
Basic sub-assemblies
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to EN 50102
Standards
CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />UL 508<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
LROS (Lloyds register of shipping)<br />GL<br />BV<br />DNV<br />UL Listed<br />CSA
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
