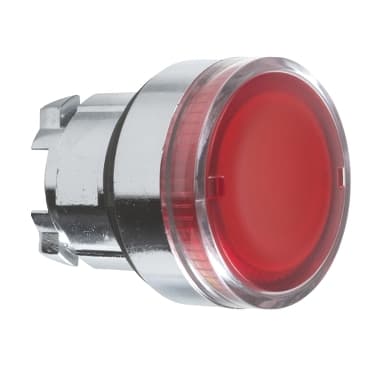

schneider ZB4BW34TQ

Selling Points

  • 1The ZB4BW34TQ is impact-resistant, dust-resistant, water-resistant, and vibration-resistant with an IP66 rating.
  • 2Features a snap-fit assembly for quick and easy installation on compatible pushbutton units and contact blocks.
  • 3Illuminated with clear color LEDs, providing clear visibility at a distance and by touch due to its flush element.
  • 4Offers momentary action and operates within a wide temperature range of -40 to 158°F.
  • 5Meets various compliance standards including RoHS, CE Marked, CSA C22.2 #14 LR44087, and UL 508/E164353 CCN NKCR.
Product Details
ZB4BW34TQ
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated push-button
Device short name
ZB4
Product Compatibility
BA 9s
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
100
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Red flush, unmarked
Operator additional information
With plain lens
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.3 in (32 mm)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Electrical composition code
M7 6 single front mounting BA 9s<br />M8 6 single and double front mounting BA 9s<br />M9 2 single front mounting BA 9s and transformer
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to EN 50102
Standards
UL 508<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />JIS C8201-1
Product Certifications
UL Listed<br />BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />GL
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
