Product Model
ZB4BW36S
Selling Points

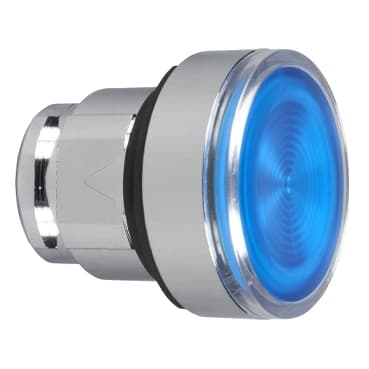

- 1High-Quality Illumination: The ZB4BW363 features a blue flush illuminated push button head with integral LED for clear visibility.
- 2Durable Construction: Made from chromium-plated metal, ensuring mechanical durability of up to 10 million cycles.
- 3Easy Installation: Compatible with various mounting options, including screw clamp terminals and plug-in connectors.
- 4IP66 Rating: Designed to withstand harsh environments with an IP66 rating, protecting against dust and water.
- 5Versatile Compatibility: Suitable for use in a variety of applications, including panel cut-outs and printed circuit board connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB4 | Product Compatibility | BA 9s |
Bezel material | Chromium plated metal | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Blue flush, unmarked | Operator additional information | With grooved lens |
Environmental characteristic | High ambient lighting environment | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.3 in (32 mm) |
Net Weight | 0.060 lb(US) (0.027 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Mechanical durability | 10000000 cycles | Electrical composition code | M7 6 single front mounting BA 9s<br />M8 6 single and double front mounting BA 9s<br />M9 2 single front mounting BA 9s and transformer |
Device presentation | Basic sub-assemblies | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to EN 50102 |
Standards | CSA C22.2 No 14<br />JIS C8201-5-1<br />UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />JIS C8201-1 | Product Certifications | CSA<br />BV<br />GL<br />DNV<br />UL Listed<br />LROS (Lloyds register of shipping) |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
