Product Model

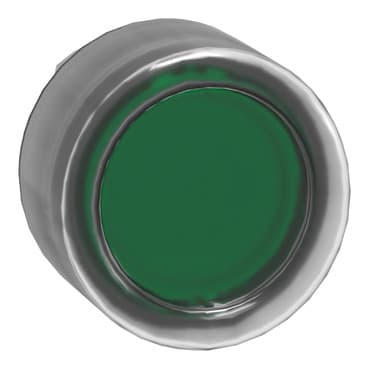

ZB4BW533
Selling Points
- 1Flush design optimizes space and provides a clean, organized appearance.
- 2Vibrant green LED indicator enhances visibility in diverse industrial settings.
- 3Protective boot cover reinforces durability, safeguarding against environmental factors and mechanical stress.
- 4IP66 and IP67 ratings ensure dust and water resistance, making it ideal for demanding environments.
- 5Compatible with a wide range of operating temperatures from -40°C to 70°C, suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB4 | Product Compatibility | Universal LED |
Bezel material | Chromium plated metal | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Green flush, unmarked | Operator additional information | Clear boot |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.068 lb(US) (0.031 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED | Device presentation | Basic sub-assemblies |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK06 conforming to IEC 62262 | Standards | IEC 60947-5-4<br />IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />UL 508<br />IEC 60947-5-1<br />IEC 60947-5-5<br />JIS C8201-1 |
Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
