Product Model

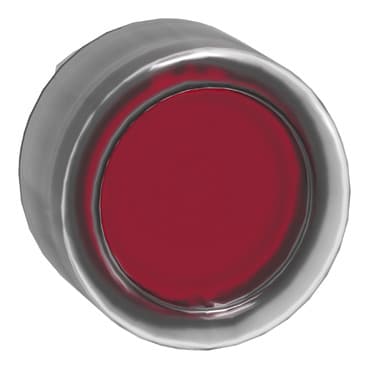

ZB4BW543
Selling Points
- 1Engineered with precision by Schneider Electric, this push button head ensures seamless operation and durability in demanding industrial environments.
- 2The vibrant red color of the button enhances visibility, making it easier to use in various control and automation systems.
- 3The accompanying boot cover provides additional protection against dust and moisture, ensuring long-lasting performance.
- 4Coupled with high-quality materials, the ZB4BW543 push button head features an ergonomic design suitable for various control and automation systems.
- 5Constructed to meet stringent industrial standards, this push button head is an integral part of Schneider Electric's comprehensive range of industrial electrical solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB4 | Product Compatibility | Universal LED |
Bezel material | Chromium plated metal | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Red flush, unmarked | Operator additional information | Clear boot |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.068 lb(US) (0.031 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED | Device presentation | Basic sub-assemblies |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK06 conforming to IEC 62262 | Standards | JIS C8201-5-1<br />UL 508<br />IEC 60947-5-5<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-1 |
Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
