ZB4BW5537

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24542

In Stock
Last updated: 2025/4/21
View Specifications

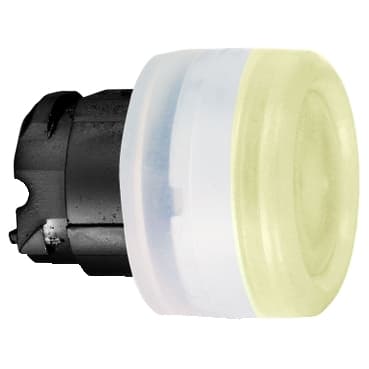

schneider ZB4BW5537

Selling Points

  • 1High-Quality Illumination: Equipped with a built-in LED for clear visibility in various environments.
  • 2Durable Construction: Made from chromium-plated metal for long-lasting performance.
  • 3Easy Installation: Compatible with universal LED systems, ensuring seamless integration.
  • 4Spring Return Mechanism: Provides a reliable and consistent operation with every press.
  • 5Compact Design: Available in a round shape with a diameter of 22 mm, ideal for space-saving installations.
Product Details
ZB4BW5537
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated push-button
Device short name
ZB4
Product Compatibility
Integral LED
Bezel material
Black metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Orange flush, unmarked
Operator additional information
Clear boot
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.068 lb(US) (0.031 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED
Device presentation
Basic sub-assemblies
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to EN 50102
Standards
UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
CSA<br />BV<br />GL<br />UL Listed<br />DNV<br />LROS (Lloyds register of shipping)
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
