schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BW7A1714

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24556

In Stock
Last updated: 2025/4/21
View Specifications

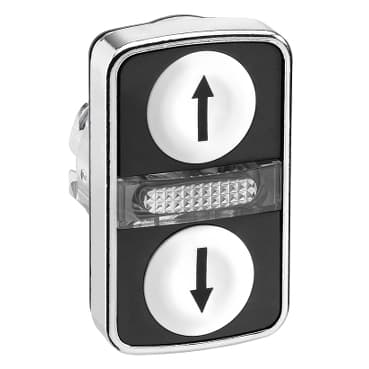

schneider ZB4BW7A1714

Selling Points

  • 1Designed for industry use with a snap-fit head and body, ensuring easy yet secure mounting.
  • 2White flush/white flush illuminated double-headed pushbutton for enhanced visibility.
  • 3Suitable for machine manufacturers (automotive, textiles, timber), control system panel builders, and energy distribution panel builders.
  • 4Ø22mm mounting diameter for seamless integration into various control panels.
  • 5Operating temperature range of -25°C to 70°C, ensuring consistent performance in diverse environments.
Product Details
ZB4BW7A1714
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated double-headed push-button
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Chromium plated metal
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
White flush, down arrow black)<br />White flush, up arrow black)
Operators description
White ''up arrow'' - black ''down arrow''
CAD overall width
1.2 in (30 mm)
CAD overall height
2.0 in (50 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.123 lb(US) (0.056 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Colour of marking
Black marking when white caps<br />White marking when green, red or black caps
Mechanical durability
1000000 cycles
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED
Device presentation
Basic sub-assemblies
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class I IEC 61140
IP degree of protection
IP66 IEC 60529<br />IP67 IEC 60529<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
Standards
IEC 60947-5-5<br />IEC 60947-5-4<br />IEC 60947-5-1<br />UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />JIS C8201-1
Product Certifications
GL<br />CSA<br />LROS (Lloyds register of shipping)<br />DNV<br />UL Listed<br />BV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
