schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BW7A17207

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24561

In Stock
Last updated: 2025/4/21
View Specifications

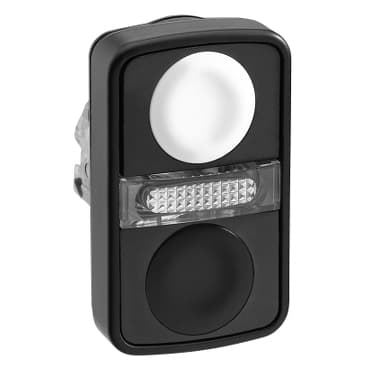

schneider ZB4BW7A17207

Selling Points

  • 1High Protection Ratings: IP66 and IP69K ratings ensure the pushbutton is dust and water-resistant.
  • 2Durable Design: Made of metal with a black bezel for long-lasting performance.
  • 3Illuminated Double Head: Features two flush black and one clear central pilot light for enhanced visibility.
  • 4Spring-Return Mechanism: Easy and intuitive operation with a spring-return (impulse/momentary) mode.
  • 5Versatile Installation: Suitable for various automation applications with a rectangular shape and 22 mm diameter.
Product Details
ZB4BW7A17207
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated double-headed push-button
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Black metal
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
Black flush, unmarked<br />White flush, unmarked
Operators description
White unmarked - black unmarked
CAD overall width
1.2 in (30 mm)
CAD overall height
2.0 in (50 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.123 lb(US) (0.056 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Colour of marking
Black marking when white caps<br />White marking when green, red or black caps
Mechanical durability
1000000 cycles
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED
Device presentation
Basic sub-assemblies
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class I IEC 61140
IP degree of protection
IP66 IEC 60529<br />IP67 IEC 60529<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
Standards
UL 508<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-1<br />IEC 60947-5-4<br />IEC 60947-5-5<br />JIS C8201-1
Product Certifications
UL Listed<br />BV<br />GL<br />LROS (Lloyds register of shipping)<br />CSA<br />DNV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
