Product Model

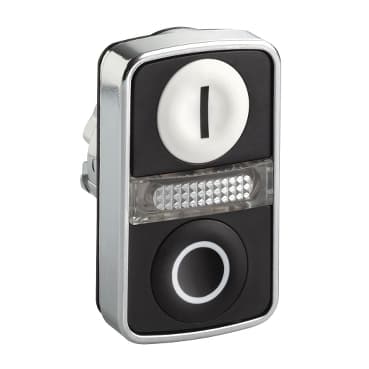

ZB4BW7A1721
Selling Points
- 1High-Quality Illumination: Double flush illuminated design with integral LED for clear visibility.
- 2Durable Construction: Chromium plated metal bezel for long-lasting performance.
- 3Robust Protection: IP69K/IP66/IK05 protection rating for harsh environments.
- 4Versatile Applications: Suitable for commercial, industrial, and automotive control and signaling applications.
- 5Reliable Operation: 1,000,000 cycles mechanical durability ensures consistent operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated double-headed push-button |
Product Compatibility | Integral LED | Device short name | ZB4 |
Bezel material | Chromium plated metal | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Rectangular | Type of operator | spring return |
Operator profile | Black flush, O white)<br />White flush, I black) | Operators description | White ''I'' - black ''O'' |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 2.0 in (50 mm) |
CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.123 lb(US) (0.056 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | Black marking when white caps<br />White marking when green, red or black caps |
Mechanical durability | 1000000 cycles | Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED |
Device presentation | Basic sub-assemblies | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Electrical shock protection class | Class I IEC 61140 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | IEC 60947-5-4<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-5-1<br />IEC 60947-1<br />IEC 60947-5-5<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
