ZB4BW7A3740

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24566

In Stock
Last updated: 2025/4/21
View Specifications

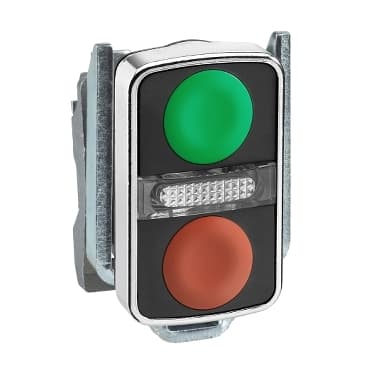

schneider ZB4BW7A3740

Selling Points

  • 1High-Impact Resistance: Designed with an IP66 rating, ensuring durability against dust, water, and vibrations.
  • 2Versatile Interface: Includes 1 green and 1 red button with a central white pilot light for clear visual identification.
  • 3Easy Installation: Snap-fit assembly makes it simple to install and replace on compatible push button units and contact blocks.
  • 4Wide Operating Temperature Range: Operates from -40°C to 70°C, suitable for various environmental conditions.
  • 5Chromium Plated Metal Bezel: Provides a robust and corrosion-resistant metal bezel for long-lasting performance.
Product Details
ZB4BW7A3740
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated double-headed push-button
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Chromium plated metal
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
Green flush, unmarked<br />Red flush, unmarked
Operators description
Green unmarked - red unmarked
CAD overall width
1.2 in (30 mm)
CAD overall height
2.0 in (50 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.123 lb(US) (0.056 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Colour of marking
Black marking when white caps<br />White marking when green, red or black caps
Mechanical durability
1000000 cycles
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED
Device presentation
Basic sub-assemblies
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class I IEC 61140
IP degree of protection
IP66 IEC 60529<br />IP67 IEC 60529<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
Standards
IEC 60947-1<br />CSA C22.2 No 14<br />UL 508<br />IEC 60947-5-4<br />IEC 60947-5-5<br />JIS C8201-5-1<br />IEC 60947-5-1<br />JIS C8201-1
Product Certifications
CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
