ZB4BW821723

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24502

In Stock
Last updated: 2025/4/21
View Specifications

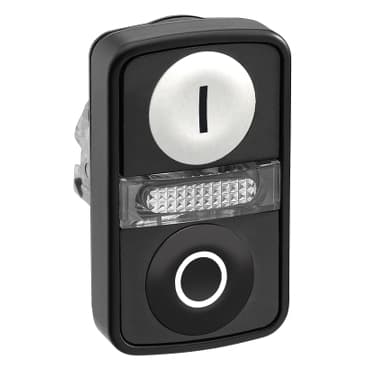

schneider ZB4BW821723

Selling Points

  • 1Highly Durable Design: Built to withstand 2 million operating cycles, ensuring long-lasting performance.
  • 2Illuminated Marking: Features a central pilot light for clear visibility in various environments.
  • 3Spring Return Operator: Easy to operate with a spring return mechanism for consistent action.
  • 4IP65 Protection: Compliant with IEC 60529, providing robust protection against dust and water.
  • 5Compliant with Safety Standards: Meets IEC 60068-2-6 and IEC 60536 for shock and electric shock protection.
Product Details
ZB4BW821723
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated double-headed push-button
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
Black flush, O white)<br />White flush, I black)
Operators description
White ''I'' - black ''O''
CAD overall width
1.1 in (28 mm)
CAD overall height
1.9 in (47 mm)
CAD overall depth
1.1 in (28 mm)
Net Weight
0.104 lb(US) (0.047 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Colour of marking
Black marking when white caps<br />White marking when green, red or black caps
Mechanical durability
1000000 cycles
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class I IEC 60536
IP degree of protection
IP40
IK degree of protection
IK05 conforming to IEC 50102
Standards
EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
UL Listed<br />BV<br />CSA<br />GL<br />LROS (Lloyds register of shipping)<br />DNV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
