schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BW8237437

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24507

In Stock
Last updated: 2025/4/21
View Specifications

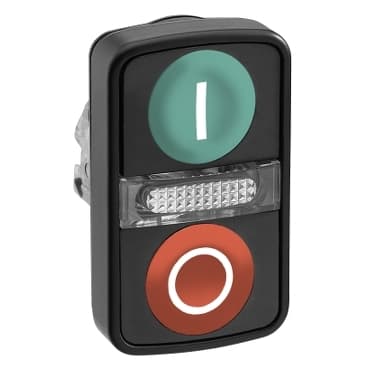

schneider ZB4BW8237437

Selling Points

  • 1High-quality illumination: Features green and red flush illuminated buttons for clear visibility.
  • 2Durable design: Constructed with black metal bezel for durability and long-lasting performance.
  • 3Compact size: Measures 22 mm in diameter, perfect for space-efficient installations.
  • 4Versatile applications: Suitable for various control and signaling applications in industrial settings.
  • 53-year warranty: Backed by a comprehensive 3-year warranty for peace of mind.
Product Details
ZB4BW8237437
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated double-headed push-button
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Black metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
Green flush, I white)<br />Red flush, O white)
Operators description
Green ''I'' - red ''O''
CAD overall width
1.1 in (28 mm)
CAD overall height
1.9 in (47 mm)
CAD overall depth
1.1 in (28 mm)
Net Weight
0.104 lb(US) (0.047 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Colour of marking
White marking when green, red or black caps<br />Black marking when white caps
Mechanical durability
1000000 cycles
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class I IEC 60536
IP degree of protection
IP40
IK degree of protection
IK05 conforming to IEC 50102
Standards
UL 508<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-1
Product Certifications
DNV<br />BV<br />CSA<br />GL<br />UL Listed<br />LROS (Lloyds register of shipping)
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
