schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

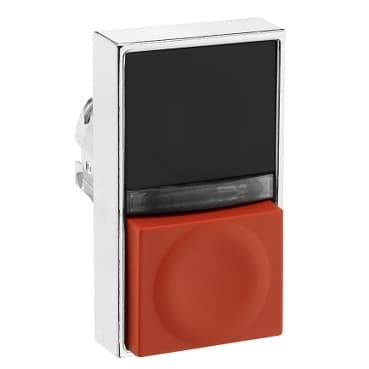

ZB4BW832743

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24510

In Stock
Last updated: 2025/5/3
View Specifications
schneider ZB4BW832743

Selling Points

  • 1Compact Design: The ZB4BW832743 features a compact 22mm extended flush design, ideal for space-sensitive applications.
  • 2Illuminated Operation: Equipped with double illumination, this push button operator provides clear visibility in various lighting conditions.
  • 3Durable Construction: The chromium-plated bezel ensures extra durability and resistance to wear and tear.
  • 4Versatile Voltage Operation: Supports full voltage operation at 24V, making it suitable for a wide range of electrical systems.
  • 5NEMA Compliance: Meets NEMA 1 standards for electrical enclosures, ensuring compliance with industry safety regulations.
Product Details
ZB4BW832743
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated double-headed push-button
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
Black flush, unmarked<br />Red projecting, unmarked
Operators description
White unmarked - red unmarked
CAD overall width
1.1 in (28 mm)
CAD overall height
1.9 in (47 mm)
CAD overall depth
1.3 in (32 mm)
Net Weight
0.101 lb(US) (0.046 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Colour of marking
White marking when green, red or black caps<br />Black marking when white caps
Mechanical durability
1000000 cycles
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class I IEC 60536
IP degree of protection
IP40
IK degree of protection
IK05 conforming to IEC 50102
Standards
EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-5-1<br />JIS C8201-1
Product Certifications
DNV<br />GL<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed<br />CSA
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
