Product Model
ZB4BW8327437
Selling Points
- 1Chromium plated bezel for extra durability.
- 222mm extended flush illuminated push button operator.
- 3Full voltage operation type momentary.
- 4Screw clamp terminals for secure connections.
- 5Nema 1/2/3/4/4X/12/13 rated for robust protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

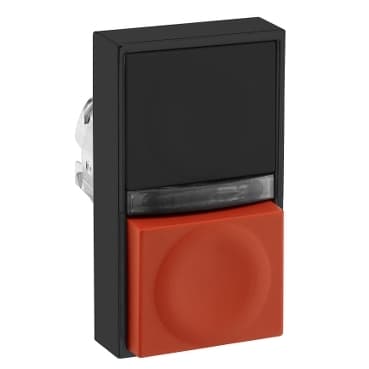

Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated double-headed push-button |
Product Compatibility | Integral LED | Device short name | ZB4 |
Bezel material | Black metal | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | Black flush, unmarked<br />Red projecting, unmarked |
Operators description | White unmarked - red unmarked | CAD overall width | 1.1 in (28 mm) |
CAD overall height | 1.9 in (47 mm) | CAD overall depth | 1.3 in (32 mm) |
Net Weight | 0.101 lb(US) (0.046 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Colour of marking | Black marking when white caps<br />White marking when green, red or black caps | Mechanical durability | 1000000 cycles |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class I IEC 60536 |
IP degree of protection | IP40 | IK degree of protection | IK05 conforming to IEC 50102 |
Standards | EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />UL 508<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />GL |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
