Product Model

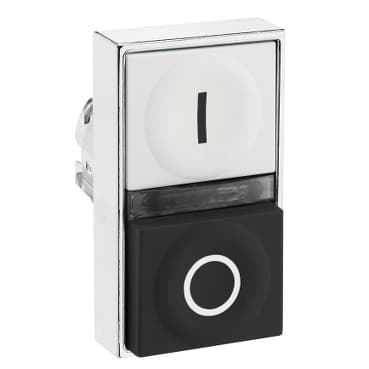

ZB4BW841723
Selling Points
- 1Built to withstand harsh environments with IP65 rating and shock resistance up to 30 gn.
- 2Compatible with 22 mm devices, quick and easy installation in a 30.5 mm hole.
- 3Features high brightness and full-surface illumination for improved visibility.
- 4Designed to perform up to 10 million operations, ensuring long-lasting reliability.
- 5Meets international standards including IEC, UL, and CSA for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated double-headed push-button |
Product Compatibility | Integral LED | Device short name | ZB4 |
Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | White flush, I black)<br />Black projecting, O white) |
Operators description | White ''I'' - black ''O'' | CAD overall width | 1.1 in (28 mm) |
CAD overall height | 1.9 in (47 mm) | CAD overall depth | 1.3 in (32 mm) |
Net Weight | 0.101 lb(US) (0.046 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Colour of marking | Black marking when white caps<br />White marking when green, red or black caps | Mechanical durability | 1000000 cycles |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class I IEC 60536 |
IP degree of protection | IP40 | IK degree of protection | IK05 conforming to IEC 50102 |
Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />JIS C8201-1 | Product Certifications | UL Listed<br />DNV<br />LROS (Lloyds register of shipping)<br />GL<br />CSA<br />BV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
