Product Model
ZB4BW842743
Selling Points

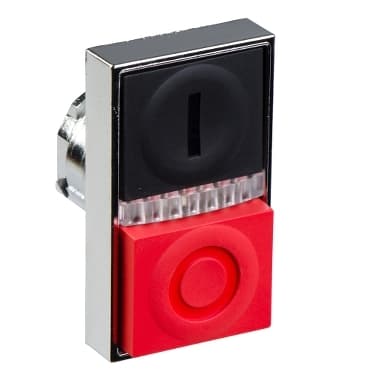

- 1Includes one flush black and one projecting red head, along with a clear central pilot light.
- 2Capable of 1,000,000 operations at no load, ensuring long-lasting performance.
- 3Designed with an IP40 degree of protection, suitable for various industrial environments.
- 4Features a spring-return (impulse/momentary) operating mode for easy use.
- 5Made of metal with a chromium-plated bezel, providing durability and aesthetic appeal.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated double-headed push-button |
Product Compatibility | Integral LED | Device short name | ZB4 |
Bezel material | Chromium plated metal | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Rectangular | Type of operator | spring return |
Operator profile | Red projecting, O white)<br />Black flush, I white) | Operators description | Black ''I'' - red ''O'' |
CAD overall width | 1.1 in (28 mm) | CAD overall height | 1.9 in (47 mm) |
CAD overall depth | 1.3 in (32 mm) | Net Weight | 0.101 lb(US) (0.046 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | White marking when green, red or black caps<br />Black marking when white caps |
Mechanical durability | 1000000 cycles | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class I IEC 60536 | IP degree of protection | IP40 |
IK degree of protection | IK05 conforming to IEC 50102 | Standards | EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C8201-1 |
Product Certifications | BV<br />GL<br />CSA<br />UL Listed<br />DNV<br />LROS (Lloyds register of shipping) | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
