schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BW8427437

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24517

In Stock
Last updated: 2025/4/21
View Specifications

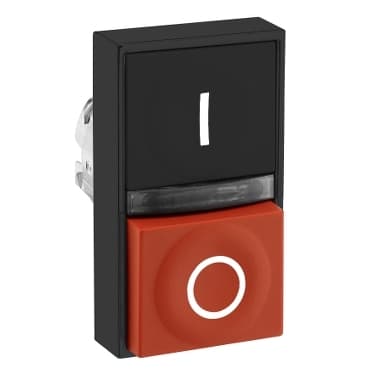

schneider ZB4BW8427437

Selling Points

  • 1High Mechanical Durability: Withstands 1,000,000 operations at no load.
  • 2Illuminated Design: Features a clear central pilot light and an illuminated double head configuration.
  • 3IP40 Protection: Suitable for various environments with its degree of protection.
  • 4Spring-Return Mechanism: Operating mode defined as spring-return, also known as impulse or momentary.
  • 5Durable Construction: Chromium-plated metal bezel with a rectangular shape for long-lasting performance.
Product Details
ZB4BW8427437
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated double-headed push-button
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Black metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
Red projecting, O white)<br />Black flush, I white)
Operators description
Black ''I'' - red ''O''
CAD overall width
1.1 in (28 mm)
CAD overall height
1.9 in (47 mm)
CAD overall depth
1.3 in (32 mm)
Net Weight
0.101 lb(US) (0.046 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Colour of marking
Black marking when white caps<br />White marking when green, red or black caps
Mechanical durability
1000000 cycles
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class I IEC 60536
IP degree of protection
IP40
IK degree of protection
IK05 conforming to IEC 50102
Standards
EN/IEC 60947-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C8201-1
Product Certifications
LROS (Lloyds register of shipping)<br />BV<br />DNV<br />CSA<br />GL<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
