schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BW953

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24526

In Stock
Last updated: 2025/4/21
View Specifications

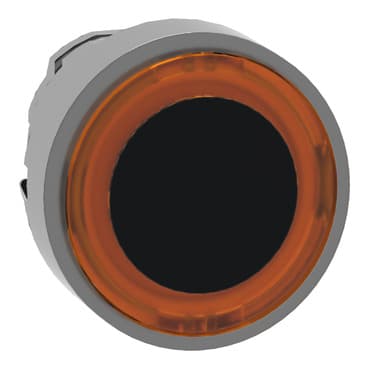

schneider ZB4BW953

Selling Points

  • 1Robust Design: IP66, IP67, IP69, and IP69K protection against solid objects, dust, and water.
  • 2Operational Efficiency: Illuminated emergency stop pushbuttons and high brightness pushbuttons for quick identification.
  • 3Versatile Options: Multiple head types including push-pull, turn to release, and key release emergency stop pushbuttons.
  • 4Comprehensive Accessories: Protective covers, legends, legend holders, pushbutton caps, boots, and bulbs available.
  • 5Global Compliance: Certified and approved for various international standards including EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and NEMA.
Product Details
ZB4BW953
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated push-button
Device short name
ZB4
Product Compatibility
Universal LED
Bezel material
Chromium plated metal
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Orange flush, unmarked
Operator additional information
With illuminated ring
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.057 lb(US) (0.026 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED
Device presentation
Basic sub-assemblies
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to EN 50102
Standards
UL 508<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />JIS C8201-1
Product Certifications
CSA<br />LROS (Lloyds register of shipping)<br />UL Listed<br />DNV<br />BV<br />GL
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
