schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BW9537

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24527

In Stock
Last updated: 2025/4/21
View Specifications

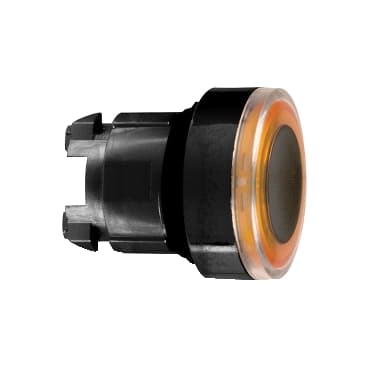

schneider ZB4BW9537

Selling Points

  • 1Built with black metal for durability in harsh environments.
  • 2Simple to install and replace, ensuring minimal downtime.
  • 3Ensures consistent and reliable operation.
  • 4Convenient mounting size for various applications.
  • 5Designed specifically for use with integral LED lights.
Product Details
ZB4BW9537
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated push-button
Device short name
ZB4
Product Compatibility
Integral LED
Bezel material
Black metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Orange flush, unmarked
Operator additional information
With illuminated ring
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.057 lb(US) (0.026 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED
Device presentation
Basic sub-assemblies
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to EN 50102
Standards
EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
BV<br />LROS (Lloyds register of shipping)<br />DNV<br />GL<br />CSA<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
