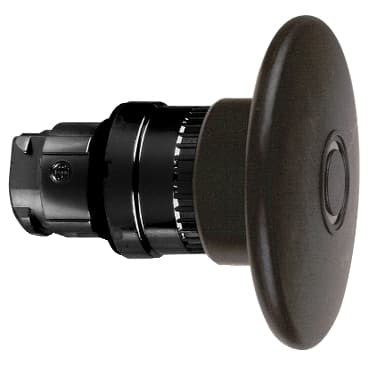

Product Model
ZB4BX27
Selling Points
- 1Ideal for quick actions and high ergonomics.
- 2IP66 rated for impact, dust, water, and vibration resistance.
- 322mm mounting diameter for easy installation in pre-existing machinery.
- 4Ergonomic mushroom shape suitable for use with thick gloves or impaired movements.
- 5Operating temperature range from -40°C to 70°C for versatile usage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Bezel material | Black metal |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | latching |
Reset | Push-pull | Operator profile | Black mushroom Ø 60 mm, unmarked |
CAD overall width | 2.4 in (60 mm) | CAD overall height | 2.4 in (60 mm) |
CAD overall depth | 2.2 in (56 mm) | Net Weight | 0.209 lb(US) (0.095 kg) |
Mechanical durability | 300000 cycles | Electrical composition code | C11 3 single front mounting<br />C15 1 single front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C10 4 single and double front mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | BV<br />DNV<br />CSA<br />GL<br />LROS (Lloyds register of shipping)<br />UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
