Product Model

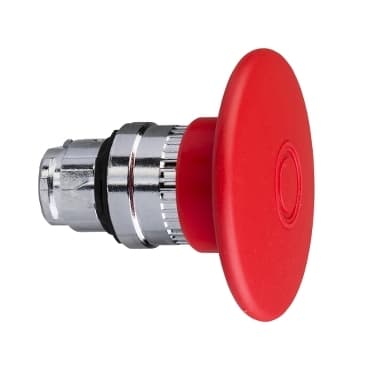

ZB4BX4
Selling Points
- 1Emergency Stop Functionality: Designed for immediate shutdown in critical situations.
- 2IP66 Protection: Conforms to IEC 60529, ensuring high resistance to dust and water.
- 3Chromium Plated Metal: Durable and corrosion-resistant bezel for long-lasting performance.
- 4Red Mushroom Operator Profile: Easy-to-identify push-pull reset mechanism.
- 5Vibration and Shock Resistance: Meets IEC 60068-2-6 and IEC 60068-2-27 standards for robust operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for emergency switching off push-button |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | mechanical latching |
Reset | Push-pull | Operator profile | Red mushroom Ø 60 mm, unmarked |
CAD overall width | 2.4 in (60 mm) | CAD overall height | 2.4 in (60 mm) |
CAD overall depth | 2.2 in (56 mm) | Net Weight | 0.209 lb(US) (0.095 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 300000 cycles |
Electrical composition code | C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />C10 4 single and double front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class I IEC 61140 |
IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X<br />NEMA 4<br />NEMA 12 |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />IEC 60364-5-53<br />EN/IEC 60947-5-1<br />GB 14048.5<br />EN/IEC 60947-5-4<br />UL 508<br />JIS C8201-1 |
Product Certifications | DNV<br />CSA<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed<br />GL | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
