ZB4BX84

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24581

In Stock
Last updated: 2025/4/21
View Specifications

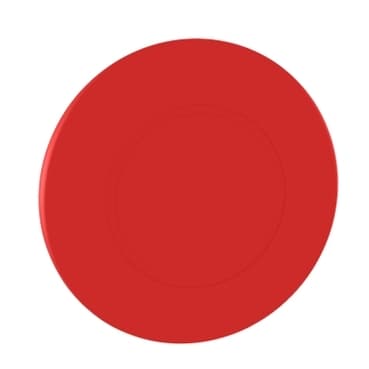

schneider ZB4BX84

Selling Points

  • 1Red Ø60 Mushroom Head: The ZB4BX84 features a distinctive red mushroom-shaped operator profile for clear visibility.
  • 2Mechanical Latching Push-Pull: Equipped with a trigger and latching push-pull mechanism for reliable operation.
  • 3IP69K Protection: Offers superior protection against dust and water, conforming to IEC 60529 standards.
  • 4Chromium Plated Metal: Constructed from chromium plated metal for durability and resistance to corrosion.
  • 5Vibration and Shock Resistance: Designed to withstand 5 gn vibration and 30 gn shock resistance, ensuring reliability in harsh environments.
Product Details
ZB4BX84
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for emergency switching off push-button
Device short name
ZB4
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
trigger action and mechanical latching
Reset
Push-pull
Operator profile
Red mushroom Ø 60 mm, unmarked
Head type
Standard
CAD overall width
2.4 in (60 mm)
CAD overall height
2.4 in (60 mm)
CAD overall depth
2.2 in (56 mm)
Net Weight
0.216 lb(US) (0.098 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
300000 cycles
Electrical composition code
C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />C10 4 single and double front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class I IEC 61140
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X<br />NEMA 4<br />NEMA 12
IK degree of protection
IK03 conforming to IEC 50102
Standards
IEC 60947-5-4<br />UL 508<br />ISO 13850<br />CSA C22.2 No 14<br />IEC 60364-5-53<br />IEC 60947-5-5<br />IEC 60947-5-1<br />GB 14048.5<br />JIS C8201-5-1<br />IEC 60947-1<br />JIS C8201-1
Product Certifications
DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />BV<br />CSA
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
