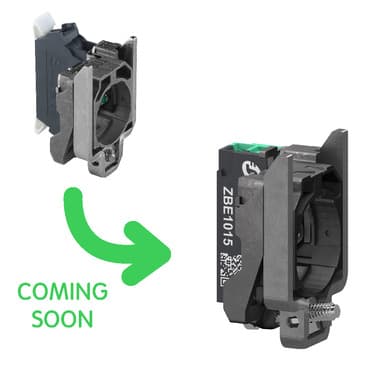

Product Model
ZB4BZ1015
Selling Points
- 1Compact Design: 1.18 in W x 1.46 in D x 1.65 in H dimensions.
- 2High-Performance Contact: 10A at 600VAC, A600 to Q600 contact rating.
- 3Easy Installation: Spring clamp terminals for quick and secure mounting.
- 4Robust Construction: Made from Zamak with silver alloy contacts for durability.
- 5Versatile Application: Suitable for various industrial applications with slow break operator.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Complete body/contact assembly |
Device short name | ZB4 | Fixing collar material | Zamak |
Sale per indivisible quantity | 1 | Head type | Standard |
Contacts type and composition | 1 NO | Contact operation | Slow-break |
Contact block type | Single | Device Composition | Fixing collar<br />Body |
Connections - terminals | Push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1<br />Push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1 | CAD overall width | 1.8 in (46.2 mm) |
CAD overall height | 1.09 in (27.6 mm) | CAD overall depth | 1.2 in (30 mm) |
Terminals description ISO n°1 | (13-14)NO | Net Weight | 0.095 lb(US) (0.043 kg) |
Contacts usage | Standard contacts | Positive opening | Without |
Operating travel | 0.08 in (2.05 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 2.45 N NO changing electrical state |
Mechanical durability | 10000000 cycles | Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
[Ui] rated insulation voltage | 300 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
[Ie] rated operational current | 6 A 120 V, AC-15, A300 IEC 60947-5-1<br />3 A 240 V, AC-15, A300 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q300 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q300 IEC 60947-5-1 | Device presentation | Basic sub-assemblies |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP20 IEC 60529 |
Standards | IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-5-5<br />UL 60947-1<br />UL 60947-5-1<br />UL 60947-5-5<br />UL 1059<br />UL 486E<br />CSA C22.2 No 60947-1<br />CSA C22.2 No 60947-5-1<br />CSA C22.2 No 158<br />CSA C22.2 No 65<br />IACS E10 | Product Certifications | BV<br />LROS (Lloyds register of shipping)<br />EAC<br />IECEE CB Scheme<br />CCC<br />UL<br />DNV-GL<br />CSA |
Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />25 mm peak to peak 2…10 Hz)IEC 60068-2-6 | Shock resistance | 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27<br />30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
