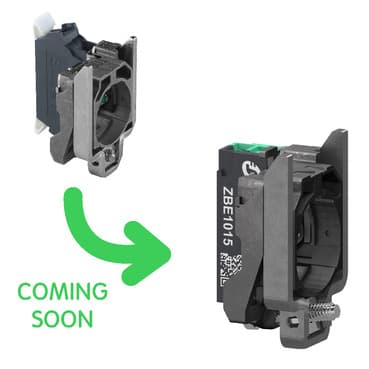

schneider ZB4BZ1025

Selling Points

  • 1Designed for high endurance with 1 million cycle performance.
  • 2Snap-fit head and body ensure secure mounting with a single screw.
  • 3Safeguards operators from unexpected contact with live circuits.
  • 4Operates from -40°C to 70°C, suitable for various environments.
  • 5Meets international standards for safety and reliability.
Product Details
ZB4BZ1025
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Complete body/contact assembly
Device short name
ZB4
Fixing collar material
Zamak
Sale per indivisible quantity
1
Head type
Standard
Contacts type and composition
1 NC
Contact operation
Slow-break
Contact block type
Single
Device Composition
Body<br />Fixing collar
Connections - terminals
Push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1<br />Push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
CAD overall width
1.8 in (46.2 mm)
CAD overall height
1.09 in (27.6 mm)
CAD overall depth
1.2 in (30 mm)
Terminals description ISO n°1
(11-12)NC
Net Weight
0.095 lb(US) (0.043 kg)
Contacts usage
Standard contacts
Positive opening
With IEC 60947-5-1 appendix K
Operating travel
0.048 in (1.217 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel)
Operating force
2.25 N NC changing electrical state
Mechanical durability
10000000 cycles
Contacts material
Silver alloy (Ag/Ni)
Short-circuit protection
10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current
10 A IEC 60947-5-1
[Ui] rated insulation voltage
300 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage
4 kV IEC 60947-1
[Ie] rated operational current
6 A 120 V, AC-15, A300 IEC 60947-5-1<br />3 A 240 V, AC-15, A300 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q300 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Device presentation
Basic sub-assemblies
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
IP degree of protection
IP20 IEC 60529
Standards
IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-5-5<br />UL 60947-1<br />UL 60947-5-1<br />UL 60947-5-5<br />UL 1059<br />UL 486E<br />CSA C22.2 No 60947-1<br />CSA C22.2 No 60947-5-1<br />CSA C22.2 No 158<br />CSA C22.2 No 65<br />IACS E10
Product Certifications
BV<br />LROS (Lloyds register of shipping)<br />EAC<br />IECEE CB Scheme<br />CCC<br />UL<br />DNV-GL<br />CSA
Vibration resistance
5 gn 10…500 Hz)IEC 60068-2-6<br />25 mm peak to peak 2…10 Hz)IEC 60068-2-6
Shock resistance
25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27<br />30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
