Product Model

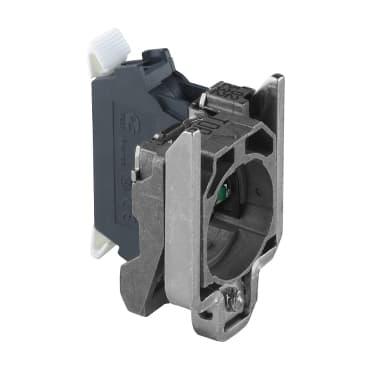

ZB4BZ1025TQ
Selling Points
- 1Built with Zamak fixing collar and silver alloy NC contacts for long-lasting performance.
- 2Snap-fit head and body with a single screw for secure and simple installation.
- 3Meets industrial standards with 10A cartridge fuse type gG and IP20 protection rating.
- 4Suitable for use with Schneider ZB4, ZB5, and ZBE series pushbutton switches.
- 5UL Listed, CSA Certified, and RoHS Compliant for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Complete body/contact assembly |
Device short name | ZB4 | Fixing collar material | Zamak |
Sale per indivisible quantity | 100 | Contacts type and composition | 1 NC |
Contact operation | Slow-break | Contact block type | Single |
Device Composition | Fixing collar<br />Body | Connections - terminals | Spring clamp terminals |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.9 in (47 mm) |
CAD overall depth | 1.5 in (37 mm) | Terminals description ISO n°1 | (11-12)NC |
Net Weight | 0.117 lb(US) (0.053 kg) | Contacts usage | Standard contacts |
Positive opening | With EN/IEC 60947-5-1 appendix K | Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel) |
Operating force | 2 N NC changing electrical state | Mechanical durability | 5000000 cycles |
Contacts material | Silver alloy (Ag/Ni) | Electrical durability | 10000000 cycles |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP20 IEC 60529 |
Standards | EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />UL 508<br />EN/IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | CSA<br />GL<br />UL<br />BV<br />DNV<br />LROS (Lloyds register of shipping) |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
