Product Model

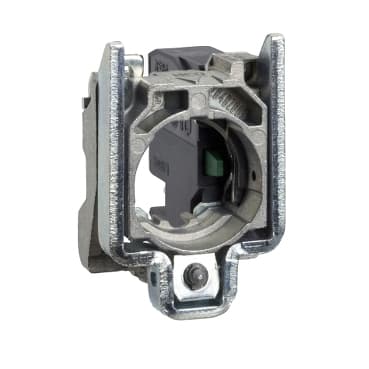

ZB4BZ1034
Selling Points
- 1High ampere rating of 10A for reliable electrical connections.
- 2Constructed with silver alloy contacts for durability and conductivity.
- 3Easy installation with screw clamp terminals and anti-loosening system.
- 4Meets international standards for harsh environments (IP 66 / IP 69K).
- 5Compatible with Harmony XB4 metal control and signaling units.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Complete body/contact assembly |
Device short name | ZB4 | Fixing collar material | Zamak |
Sale per indivisible quantity | 1 | Head type | Standard |
Contacts type and composition | 2 NO | Contact operation | Slow-break |
Contact block type | Single | Device Composition | Body<br />Fixing collar |
Connections - terminals | Plug-in connector | CAD overall width | 1.2 in (30 mm) |
CAD overall height | 1.9 in (47 mm) | CAD overall depth | 1.5 in (37 mm) |
Terminals description ISO n°1 | (13-14)NO | Net Weight | 0.128 lb(US) (0.058 kg) |
Contacts usage | Standard contacts | Positive opening | Without |
Operating travel | 0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating torque | 0.44 lbf.in (0.05 N.m) NO changing electrical state |
Mechanical durability | 5000000 cycles | Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A EN/IEC 60947-5-1 |
[Ui] rated insulation voltage | 250 V 3)EN 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV EN 60947-1 |
[Ie] rated operational current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1<br />6 A 120 V, AC-15, A300 EN/IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 | Electrical durability | 10000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />10000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />10000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />10000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />10000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
IP degree of protection | IP20 IEC 60529 | Standards | UL 508<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1 |
Product Certifications | CSA<br />BV<br />UL<br />GL<br />LROS (Lloyds register of shipping)<br />DNV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
