schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BZ1035TQ

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24611

In Stock
Last updated: 2025/4/21
View Specifications

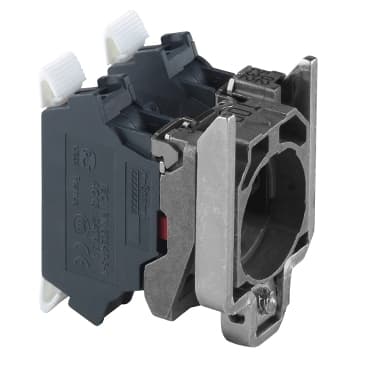

schneider ZB4BZ1035TQ

Selling Points

  • 1High-Quality Contacts: 2NO slow-break contacts ensure reliable operation.
  • 2Robust Durability: Designed to withstand 5g vibration and 30g shock resistance.
  • 3Compact Design: Measures 1.85 in H x 1.18 in W x 1.46 in D, perfect for tight spaces.
  • 4Easy Installation: Spring clamp terminals simplify connection and disconnection.
  • 5Compliant with Standards: Meets EN/IEC 60947-1, EN/IEC 60947-5-1, and other industrial standards.
Product Details
ZB4BZ1035TQ
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Complete body/contact assembly
Device short name
ZB4
Fixing collar material
Zamak
Sale per indivisible quantity
100
Contacts type and composition
2 NO
Contact operation
Slow-break
Contact block type
Single
Device Composition
Body<br />Fixing collar
Connections - terminals
Spring clamp terminals
CAD overall width
1.2 in (30 mm)
CAD overall height
1.9 in (47 mm)
CAD overall depth
1.5 in (37 mm)
Terminals description ISO n°1
(13-14)NO
Net Weight
0.137 lb(US) (0.062 kg)
Contacts usage
Standard contacts
Positive opening
Without
Operating travel
0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel)
Operating torque
0.44 lbf.in (0.05 N.m) NO changing electrical state
Mechanical durability
5000000 cycles
Contacts material
Silver alloy (Ag/Ni)
Electrical durability
10000000 cycles
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
IP degree of protection
IP20 IEC 60529
Standards
EN/IEC 60947-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />JIS C8201-1
Product Certifications
CSA<br />UL<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />GL
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
