Product Model

ZB4BZ1043

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24614

In Stock
Last updated: 2025/4/21
View Specifications

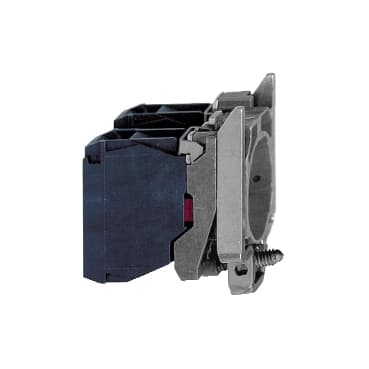

schneider ZB4BZ1043

Selling Points

  • 1High Durability: Designed to withstand 10,000,000 cycles.
  • 2Faston Connector: 2NC faston connector for secure connections.
  • 3Temperature Range: Operates between -40°C to 70°C.
  • 4IP20 Protection: Meets IP20 degree of protection standards.
  • 5Versatile Use: Suitable for push buttons or selector switches.
Product Details
ZB4BZ1043
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Complete body/contact assembly
Device short name
ZB4
Fixing collar material
Zamak
Sale per indivisible quantity
1
Head type
Standard
Contacts type and composition
2 NC
Contact operation
Slow-break
Contact block type
Single
Device Composition
Body<br />Fixing collar
Connections - terminals
Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm
CAD overall width
1.2 in (30 mm)
CAD overall height
1.9 in (47 mm)
CAD overall depth
1.5 in (37 mm)
Terminals description ISO n°1
(11-12)NC
Net Weight
0.137 lb(US) (0.062 kg)
Contacts usage
Standard contacts
Positive opening
With IEC 60947-5-1 appendix K
Operating travel
0.06 in (1.5 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel)
Mechanical durability
5000000 cycles
Contacts material
Silver alloy (Ag/Ni)
[Ui] rated insulation voltage
250 V 3)IEC 60947-1
Electrical durability
10000000 cycles
Electrical reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
IP degree of protection
IP20 IEC 60529
Standards
IEC 60947-5-1<br />IEC 60947-1<br />CSA C22.2 No 14<br />IEC 60947-5-5<br />IEC 60947-5-4<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1
Product Certifications
BV<br />UL<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
