Product Model

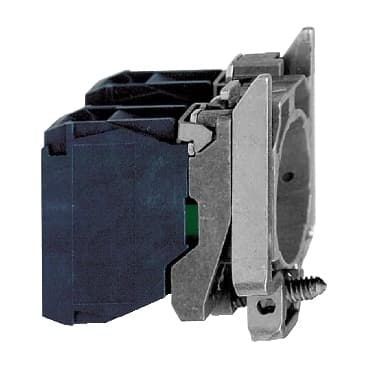

ZB4BZ105TQ
Selling Points
- 1Robust Design: Withstands harsh environments and ensures long-lasting performance.
- 2Easy Assembly: Quick and easy disassembly for maintenance and replacement.
- 3High Current Rating: Continuous current rating of 10A, suitable for demanding applications.
- 4Durable Contacts: Silver alloy (Ag/Ni) contacts for reliable connections.
- 5Versatile Connectivity: Screw clamp terminal for various connection options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Complete body/contact assembly |
Device short name | ZB4 | Fixing collar material | Zamak |
Sale per indivisible quantity | 100 | Contacts type and composition | 1 NO + 1 NC |
Contact operation | Slow-break | Contact block type | Single |
Device Composition | Fixing collar<br />Body | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
Contacts usage | Standard contacts | Positive opening | With EN/IEC 60947-5-1 appendix K |
Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating torque | 0.44 lbf.in (0.05 N.m) NO changing electrical state |
Mechanical durability | 5000000 cycles | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1 |
Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A EN/IEC 60947-5-1 |
[Ui] rated insulation voltage | 600 V 3)EN 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV EN 60947-1 |
[Ie] rated operational current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1<br />6 A 120 V, AC-15, A600 EN/IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 | Electrical durability | 10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />10000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />10000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />10000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
IP degree of protection | IP20 IEC 60529 | Standards | EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-1 |
Product Certifications | DNV<br />CSA<br />GL<br />LROS (Lloyds register of shipping)<br />UL<br />BV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
