schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4FA434

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24785

In Stock
Last updated: 2025/4/22
View Specifications

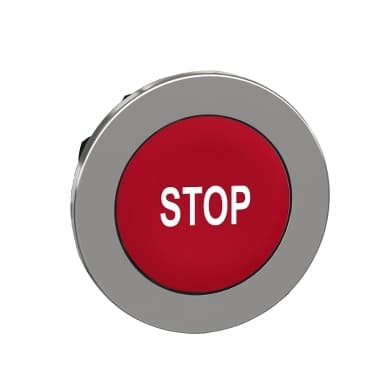

schneider ZB4FA434

Selling Points

  • 1Highly Durable: Built to withstand 10,000,000 cycles.
  • 2IP66 and IP67 Rated: Ensures protection against dust and water.
  • 3Chromium Plated Metal: Provides a robust and corrosion-resistant construction.
  • 4Spring Return Mechanism: Ensures consistent operation.
  • 5Easy Installation: Designed for seamless integration into various systems.
Product Details
ZB4FA434
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB4F
Bezel material
Chromium plated metal
Mounting diameter
1.2 in (30.5 mm)
Sale per indivisible quantity
1
Head type
Built-in-flush
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Red flush, STOP white)
cap/operator or lens colour
Red
CAD overall width
1.4 in (36.6 mm)
CAD overall height
1.4 in (36.6 mm)
CAD overall depth
1.2 in (31 mm)
Mechanical durability
10000000 cycles
Electrical composition code
C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50E<br />Type 12 UL 50E<br />Type 4 UL 50E<br />Type 4X UL 50E
IK degree of protection
IK06 conforming to IEC 50102
Standards
CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-4<br />UL 508<br />IEC 60947-1<br />JIS C8201-5-1<br />CE<br />JIS C8201-1
Product Certifications
UL Listed<br />CSA<br />CCC<br />EAC
Vibration resistance
5 gn 10…500 Hz)IEC 60068-2-6<br />25 mm peak to peak 2…10 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Specifications may be subject to change without notice
