Product Model

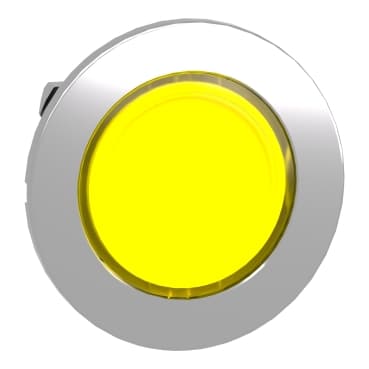

ZB4FA88
Selling Points
- 1High Performance in Harsh Environments: Operates from -40°C to 70°C, ensuring reliability in extreme conditions.
- 2Ergonomic Design: Provides a clear, illuminated yellow color for easy visibility, enhancing user experience.
- 3Durable Construction: Vibration resistant, impact resistant, and dust resistant with IP69K protection.
- 4Customizable Options: Available with various connections including screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
- 5Wide Application Range: Suitable for general-purpose applications in industries like packaging, material handling, and energy distribution panels.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB4F | Product Compatibility | Universal LED |
Bezel material | Chromium plated metal | Head type | Built-in-flush |
Mounting diameter | 1.2 in (30.5 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Yellow flush, unmarked | Operator additional information | For insertion of legend |
CAD overall width | 1.4 in (36.6 mm) | CAD overall height | 1.4 in (36.6 mm) |
CAD overall depth | 1.2 in (31 mm) | Net Weight | 0.13 lb(US) (0.06 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50 E<br />Type 12 UL 50 E<br />Type 4 UL 50 E<br />Type 4X UL 50 E | IK degree of protection | IK06 conforming to EN 50102 |
Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />CE<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA<br />CCC<br />EAC |
Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Specifications may be subject to change without notice
