Product Model
ZB4FD89
Selling Points

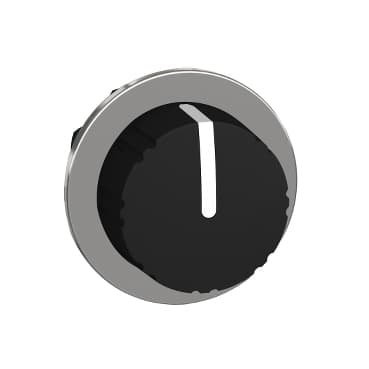

- 1Rotary Actuator with Black Finish: The ZB4FD89 features a black rotary actuator for durability and visibility.
- 2IP66 Rating for Harsh Environments: Ensures protection against solid objects, dust, and water, making it suitable for demanding applications.
- 33 Stable Positions: Offers reliable operation with three distinct positions for precise control.
- 4Compact Design: Fits seamlessly into 30.5mm mounting holes, saving space in control panels.
- 5Vibration and Impact Resistant: Designed to withstand harsh conditions, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for selector switch |
Device short name | ZB4F | Bezel material | Chromium plated metal |
Mounting diameter | 1.2 in (30.5 mm) | Head type | Built-in-flush |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | Right to centre spring return | Operator profile | Black knurled knob |
Operator position information | 3 positions +/- 45° | CAD overall width | 1.4 in (36.6 mm) |
CAD overall height | 1.4 in (36.6 mm) | CAD overall depth | 1.9 in (47 mm) |
Net Weight | 0.176 lb(US) (0.080 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Mechanical durability | 1000000 cycles | Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50 E<br />Type 12 UL 50 E<br />Type 4 UL 50 E<br />Type 4X UL 50 E |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />CE<br />JIS C8201-1 |
Product Certifications | UL Listed<br />CSA<br />CCC<br />EAC | Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Specifications may be subject to change without notice
