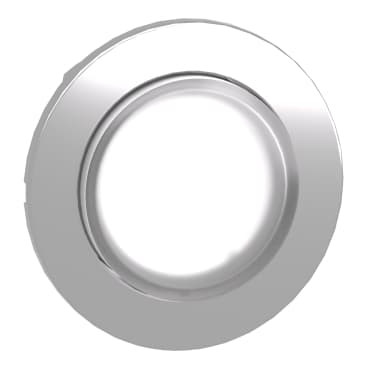

Product Model
ZB4FH13
Selling Points
- 1Constructed from chromium plated metal for durability and resistance to high-pressure washing.
- 2Designed for universal LED compatibility, ensuring seamless integration.
- 3Offers IP66/IP67/IP69K protection, suitable for harsh environments exposed to dust and water.
- 4Rated for 500,000 cycles, ensuring reliable operation over time.
- 5Operates effectively in temperatures ranging from -40 to 70 °C (-40 to 158 °F).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
Product Compatibility | Universal LED | Device short name | ZB4F |
Bezel material | Chromium plated metal | Head type | Built-in-flush |
Mounting diameter | 1.2 in (30.5 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | push-push |
Operator profile | White projecting, unmarked | CAD overall width | 1.4 in (36.6 mm) |
CAD overall height | 1.4 in (36.6 mm) | CAD overall depth | 1.3 in (33 mm) |
Net Weight | 0.128 lb(US) (0.058 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Mechanical durability | 500000 cycles | Electrical composition code | M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class I IEC 60536 |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50 E<br />Type 12 UL 50 E<br />Type 4 UL 50 E<br />Type 4X UL 50 E | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />CE<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA<br />CCC<br />EAC |
Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Specifications may be subject to change without notice
