Product Model

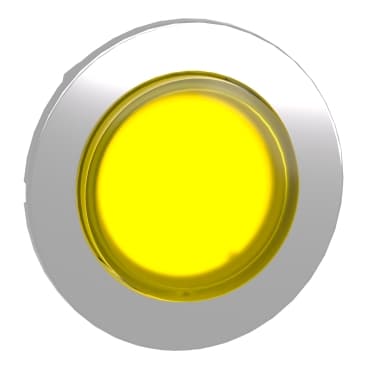

ZB4FH83
Selling Points
- 1Highly Illuminated Design: The ZB4FH83 features a bright, yellow LED illumination for clear visibility in various environments.
- 2Durable Construction: Made from chromium-plated metal, this switch offers high vibration resistance and chemical resistance.
- 3IP66 to IP69K Rating: Ensures protection against dust and water, making it suitable for harsh industrial conditions.
- 4Wide Compatibility: Designed for use with Schneider Harmony XB4 Series 30.5mm illuminated pushbutton switches.
- 5Long-Lasting Performance: Withstands up to 500,000 cycles, ensuring reliable operation over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
Product Compatibility | Universal LED | Device short name | ZB4F |
Bezel material | Chromium plated metal | Head type | Built-in-flush |
Mounting diameter | 1.2 in (30.5 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | push-push |
Operator profile | Yellow projecting, unmarked | cap/operator or lens colour | Yellow |
CAD overall width | 1.4 in (36.6 mm) | CAD overall height | 1.4 in (36.6 mm) |
CAD overall depth | 1.3 in (33 mm) | Net Weight | 0.128 lb(US) (0.058 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 500000 cycles |
Electrical composition code | M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Electrical shock protection class | Class I IEC 60536 | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50 E<br />Type 12 UL 50 E<br />Type 4 UL 50 E<br />Type 4X UL 50 E |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-4<br />UL 508<br />IEC 60947-1<br />JIS C8201-5-1<br />CE<br />JIS C8201-1 |
Product Certifications | UL Listed<br />CSA<br />CCC<br />EAC | Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Specifications may be subject to change without notice
