Product Model

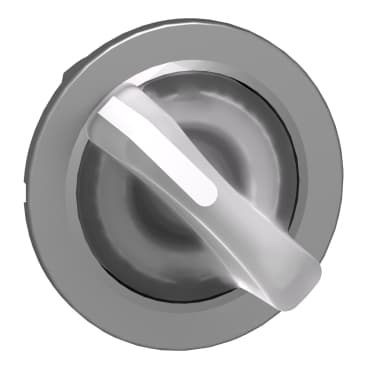

ZB4FK1413
Selling Points
- 1Ergonomic interface for easy control and installation.
- 230.5mm diameter, suitable for flush mounting.
- 3Illuminated with a clear white color for visual distinction.
- 4Spring-return mechanism for reliable operation.
- 5Vibration, impact, and dust-resistant with IP66 protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated selector switch |
Product Compatibility | Universal LED | Device short name | ZB4F |
Bezel material | Chromium plated metal | Head type | Built-in-flush |
Mounting diameter | 1.2 in (30.5 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | Right to left spring return |
Operator profile | White standard handle | Operator position information | 2 positions 90° |
cap/operator or lens colour | White | CAD overall width | 1.4 in (36.6 mm) |
CAD overall height | 1.4 in (36.6 mm) | CAD overall depth | 1.9 in (47 mm) |
Net Weight | 0.172 lb(US) (0.078 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Mechanical durability | 500000 cycles | Electrical composition code | M3 4 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />M4 4 single and double front mounting integral LED |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50 E<br />Type 12 UL 50 E<br />Type 4 UL 50 E<br />Type 4X UL 50 E |
IK degree of protection | IK04 conforming to IEC 50102 | Standards | CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-4<br />UL 508<br />IEC 60947-1<br />JIS C8201-5-1<br />CE<br />JIS C8201-1 |
Product Certifications | UL Listed<br />CSA<br />CCC<br />EAC | Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Specifications may be subject to change without notice
