schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4FV063

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24891

In Stock
Last updated: 2025/4/22
View Specifications

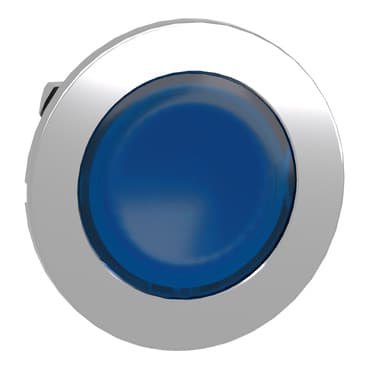

schneider ZB4FV063

Selling Points

  • 1Made from chromium-plated metal for robustness and resistance to high pressure washers.
  • 2Quick and easy assembly and disassembly for seamless integration.
  • 3Designed to operate in temperatures from -40°C to 158°C and withstand IP66, IP67, and IP69K ratings.
  • 4Compatible with universal LED devices, ensuring versatility in various applications.
  • 5Meets UL Listed, CSA, CCC, and EAC certifications for reliability and safety.
Product Details
ZB4FV063
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for pilot light
Product Compatibility
Universal LED
Device short name
ZB4F
Bezel material
Chromium plated metal
Mounting diameter
1.2 in (30.5 mm)
Sale per indivisible quantity
1
Head type
Built-in-flush
Shape of signaling unit head
Round
cap/operator or lens colour
Blue
Operator additional information
With plain lens
CAD overall width
1.4 in (36.6 mm)
CAD overall height
1.4 in (36.6 mm)
CAD overall depth
1.2 in (31 mm)
Net Weight
0.128 lb(US) (0.058 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Electrical composition code
P1 front mounting integral LED<br />P2 front mounting integral LED and transformer
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50 E<br />Type 12 UL 50 E<br />Type 4 UL 50 E<br />Type 4X UL 50 E
IK degree of protection
IK06 conforming to IEC 50102
Standards
EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />CE<br />JIS C8201-1
Product Certifications
UL Listed<br />CSA<br />CCC<br />EAC
Vibration resistance
5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Specifications may be subject to change without notice
