Product Model

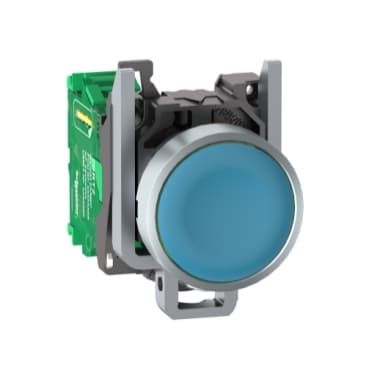

ZB4RTA6
Selling Points
- 1Wireless & Batteryless Design: No batteries required for operation.
- 2IP66 Rating: Durable and resistant to dust and water.
- 322mm Standard: Compact size fits various applications.
- 4Spring Return Operator: Automatically returns to original position.
- 5Blue Actuator: Easy-to-use blue-colored pushbutton.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Wireless and batteryless transmitter |
Device short name | XB5R | Bezel material | Chromium plated metal |
Fixing collar material | Zamak | Mounting diameter | 0.9 in (22 mm) |
Transmission frequency | 2405 MHz | emission class | 5M00G7W |
Antenna type | Omnidirectional | Shape of signaling unit head | Round |
Type of operator | spring return push-button with transmitter | Operator profile | Blue flush |
Max power consumption in W | 1 mW | Number of Channels | 16 |
Modulation technique | O-QPSK | Bandwidth | 5 MHz |
Antenna gain | 0 dBi | Embedding Depth | 1.7 in (42 mm) |
CAD overall height | 1.6 in (41.5 mm) | CAD overall width | 1.2 in (30 mm) |
CAD overall depth | 1.7 in (43 mm) | Net Weight | 0.099 lb(US) (0.045 kg) |
Operating travel | 0.2 in (4.3 mm) total travel) | Operating force | 10 N C/O changing electrical state |
Mechanical robustness | Free fall resistance 1000 mm IEC 60068-2-32 | Standards | CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-1<br />UL 508 |
Radio agreement | ANATEL<br />ARIB T66<br />FCC<br />ICASA<br />RSS | Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
Maximum sensing distance | 328.08 ft (100 m) in free field<br />82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure<br />984.3 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna | Acquisition time | 2 ms |
Response time | < 2 ms | Emission Power | 3 mW |
Fixing mode | Fixing screw beneath head 7.08…10.6 lbf.in (0.8…1.2 N.m) | Electrical composition code | PW1 |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Relative humidity | 95 % -40…158 °F (-40…70 °C) without condensation |
IP degree of protection | IP66 IEC 60529 front face)<br />IP67 IEC 60529 front face)<br />IP69 IEC 60529 front face)<br />IP69K IEC 60529 front face) | IK degree of protection | IK03 conforming to IEC 50102 |
Mechanical durability | 1000000 cycles | Shock resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27<br />30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Vibration resistance | 5 gn 11…500 Hz)IEC 60068-2-6<br />+/- 10 mm 2…11 Hz)IEC 60068-2-6 | Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3 |
Product Certifications | C-tick<br />UL<br />BT 2006/95/EC<br />CSA<br />GOST | Directives | 1999/5/EC - R&TTE directive<br />2004/108/EC - electromagnetic compatibility |
Specifications may be subject to change without notice
