Product Model

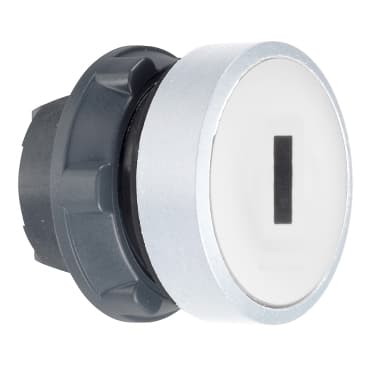

ZB5AA131C1
Selling Points
- 1Flush Mount Design: Perfect for seamless integration into any control panel.
- 2Non-Illuminated: No need for additional lighting; works well in low-light environments.
- 3Black 'I' Legend: Clearly marked with a black 'I' symbol for easy identification.
- 4White Plastic Bezel: Durable and easy to clean, made of high-quality white plastic.
- 5Spring Return Standard: Ensures consistent and reliable operation with a spring return mechanism.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB5 | Bezel material | Plastic colour plated white |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | spring return | Operator profile | White flush, I black) |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.1 in (28 mm) | Net Weight | 0.040 lb(US) (0.018 kg) |
Mechanical durability | 10000000 cycles | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK03 conforming to IEC 50102 | Product Certifications | BV<br />GL<br />UL Listed<br />LROS (Lloyds register of shipping)<br />DNV<br />CSA |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
