Product Model

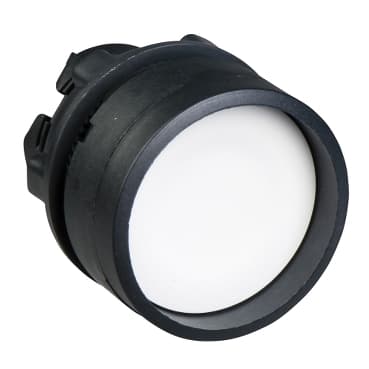

ZB5AA16
Selling Points
- 1High efficiency and ease of use with innovative features.
- 2Robust construction with high impact resistance up to IK06 rating.
- 3IP66 protection against dust and water ingress.
- 4Compatible with various mounting options for flexibility.
- 5UL Listed and CSA approved for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB5 | Bezel material | Dark grey plastic |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | spring return | Operator profile | White recessed, unmarked |
Operator additional information | High guard | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.2 in (31 mm) |
Net Weight | 0.04 lb(US) (0.02 kg) | Mechanical durability | 10000000 cycles |
Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | UL 508<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />JIS C8201-1 |
Product Certifications | UL Listed<br />LROS (Lloyds register of shipping)<br />CSA<br />DNV<br />GL<br />BV | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
