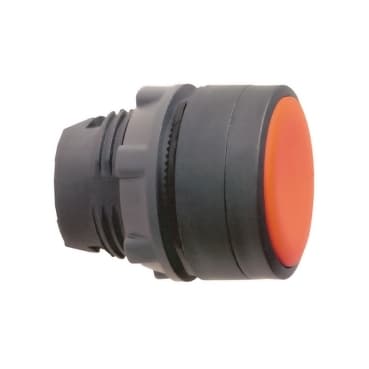

schneider ZB5AA44

Selling Points

  • 1Robust and Ergonomic Design: The ZB5AA44 features a recessed high guard head, providing a secure and comfortable interface for controlling machines.
  • 2Spring Return Mechanism: Equipped with a spring return operator, ensuring consistent and reliable operation.
  • 3High Durability: Designed to withstand 10 million cycles, making it a durable choice for industrial applications.
  • 4IP69K Protection: Offers excellent resistance to high-pressure washers and harsh environments, ensuring long-lasting performance.
  • 5Non-Illuminated and Unmarked: Perfect for applications where visibility is not required, maintaining a clean and unobtrusive design.
Product Details
ZB5AA44
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB5
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
Head type
Standard
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Red flush, unmarked
Operator additional information
High guard
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (31 mm)
Net Weight
0.04 lb(US) (0.02 kg)
Mechanical durability
10000000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Electrical composition code
C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Standards
IEC 60947-5-1<br />JIS C8201-5-1<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />IEC 60947-1<br />UL 508<br />JIS C8201-1
Product Certifications
CSA<br />BV<br />LROS (Lloyds register of shipping)<br />DNV<br />UL Listed<br />GL
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
