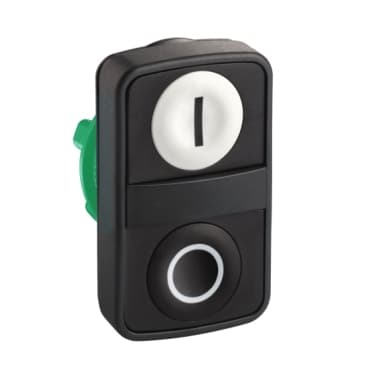

Product Model
ZB5AA7121
Selling Points
- 1High-quality double insulated plastic bezel for durability and safety.
- 2I/O symbols for clear identification of input and output positions.
- 3IP66 rating ensures the switch is resistant to dust and water.
- 4Flat button shape provides easy operation and minimal space usage.
- 5Operating temperature range of -40°C to 70°C for versatile application in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for double-headed push-button |
Device short name | ZB5 | Bezel material | Dark grey plastic |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | Black flush, O white)<br />White flush, I black) |
Operators description | White ''I'' - black ''O'' | CAD overall width | 1.2 in (30 mm) |
CAD overall height | 2.0 in (50 mm) | CAD overall depth | 1.2 in (30 mm) |
Net Weight | 0.051 lb(US) (0.023 kg) | Colour of marking | Black marking when white caps<br />White marking when green, red or black caps |
Mechanical durability | 1000000 cycles | Station name | XALD 1 cut-out |
Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting<br />SF2 2 single front mounting<br />SR2 2 single rear mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP69K IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />IEC 60947-5-1<br />IEC 60947-1<br />UL 508<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
