Product Model
ZB5AA73133
Selling Points
- 1Withstands up to 1015.26 psi (7000000 Pa) at 131 °F (55 °C).
- 2Ensures reliable operation in harsh environments.

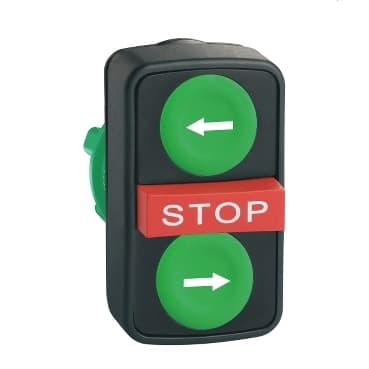

- 3Includes green flush, white left arrow, and red projecting STOP push-buttons.
- 4Designed for 1,000,000 cycles of mechanical durability.
- 5Compatible with open protocols like Modbus and Ethernet Modbus/TCP.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for triple-headed push-button |
Device short name | XB5 | Bezel material | Dark grey plastic |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Shape of signaling unit head | Rectangular | Type of operator | spring return |
Operator profile | Red projecting, STOP white)<br />Green flush, left arrow white)<br />Green flush, right arrow white) | Operators description | Green ''right arrow'' - green ''left arrow'' - red ''STOP'' |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 2.0 in (50 mm) |
CAD overall depth | 1.4 in (35 mm) | Net Weight | 0.051 lb(US) (0.023 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | White marking when green, red or black caps<br />Black marking when white caps |
Mechanical durability | 1000000 cycles | Station name | XALD 1 cut-out |
Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting | Device presentation | Basic element |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to IEC 50102 |
Standards | CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-1<br />JIS C8201-5-1<br />UL 508<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | UL Listed<br />GL<br />DNV<br />LROS (Lloyds register of shipping)<br />BV<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
