Product Model
ZB5AA8234
Selling Points
- 1High Durability: Withstands up to 1,000,000 mechanical cycles.
- 2Robust Design: Designed for harsh environments with IP40 protection.
- 3Easy Installation: Simple mounting system with a diameter of 22 mm.
- 4Versatile Marking: Available in green and red flush markings.
- 5Comprehensive Certifications: Meets standards like IEC 60536, IEC 60529, and NEMA 4X.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

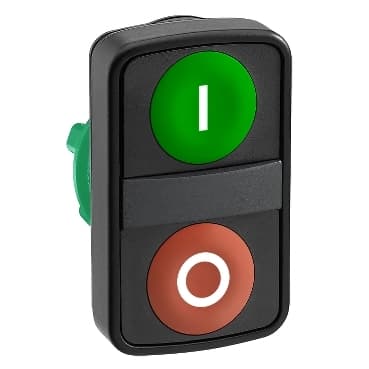

Range of Product | Harmony XB5 | Product or Component Type | Head for double-headed push-button |
Device short name | ZB5 | Bezel material | Plastic |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | Green flush, I white)<br />Red flush, O white) |
Operators description | Green ''I'' - red ''O'' | CAD overall width | 1.1 in (28 mm) |
CAD overall height | 1.9 in (47 mm) | CAD overall depth | 1.3 in (32 mm) |
Net Weight | 0.049 lb(US) (0.022 kg) | Colour of marking | White marking when green, red or black caps<br />Black marking when white caps |
Mechanical durability | 1000000 cycles | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 60536 | IP degree of protection | IP40 IEC 60529 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-1 |
Product Certifications | CSA<br />GL<br />BV<br />UL Listed<br />DNV<br />LROS (Lloyds register of shipping) | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
