Product Model

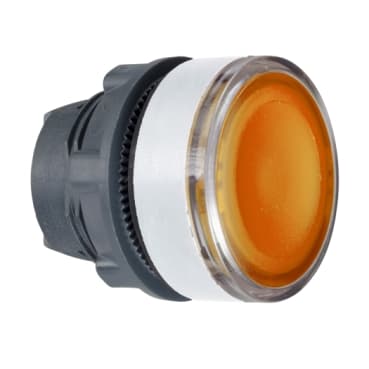

ZB5AA88C1
Selling Points
- 1Ergonomic design for comfortable machine control.
- 2Easy installation and replacement on compatible systems.
- 3High-quality materials for durability and reliability.
- 4Illuminated for clear visibility in various environments.
- 5Compatible with Harmony XB5 and XALF series systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5<br />Harmony XALF | Product or Component Type | Head for illuminated push-button |
Device short name | ZB5 | Product Compatibility | Integral LED |
Bezel material | Plastic colour plated white | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Yellow flush, unmarked | Operator additional information | For insertion of legend |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.040 lb(US) (0.018 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Cap/operator or lens colour | Yellow |
Marking | Unmarked | Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED<br />C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting<br />SF2 2 single front mounting<br />SR2 2 single rear mounting |
Device presentation | Basic element | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK03 conforming to EN 50102 |
Product Certifications | GL<br />DNV<br />CSA<br />LROS (Lloyds register of shipping)<br />UL Listed<br />BV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
