Product Model

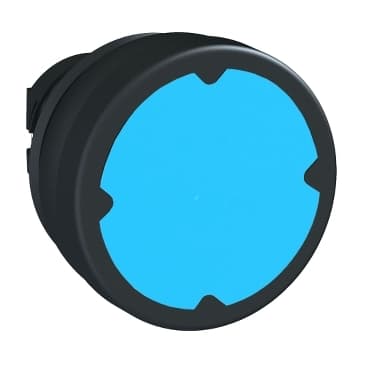

ZB5AC980
Selling Points
- 1Designed for severe environments with high impact resistance up to IK06 rating.
- 2Sealing effectiveness rated up to IP67, ensuring reliable operation in harsh conditions.
- 3Available in flush mounting with a round head, suitable for various industrial applications.
- 4Features a spring return operator for quick and efficient operation.
- 5Includes a wide range of accessories such as legend panels, pushbutton caps, and protective covers for enhanced customization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for push-button |
Device short name | ZB5 | Bezel material | Black plastic |
Head type | Standard | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | spring return | Operator additional information | Horizontal mounting<br />Vertical mounting |
CAD overall width | 1.5 in (37 mm) | CAD overall height | 0.7 in (18.5 mm) |
CAD overall depth | 1.5 in (37 mm) | Net Weight | 0.053 lb(US) (0.024 kg) |
Resistance to high pressure washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) | Operator profile | Light blue flush, unmarked |
Mechanical durability | 10000000 cycles | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
Device presentation | Basic element | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class II IEC 61140 |
IP degree of protection | IP66 IEC 60529<br />IP69K<br />IP67 | NEMA degree of protection | NEMA 4 UL 508<br />NEMA 13<br />NEMA 12 |
IK degree of protection | IK03 conforming to IEC 62262 | Standards | CSA C22.2<br />IEC 60947-1<br />IEC 60947-5-1<br />UL 508 |
Product Certifications | CSA<br />CE<br />UL | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
