Product Model

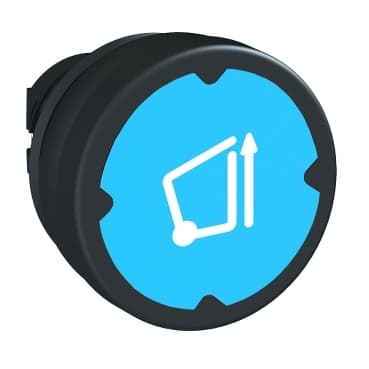

ZB5AC98005
Selling Points
- 1Designed for severe environments with high impact resistance up to IK06 rating.
- 2Sealing effectiveness ensures protection against dust and water.
- 3Functions between -40 to +70°C, making it suitable for various industrial applications.
- 4Available in 22mm mounting hole diameter for easy installation.
- 5Built with flat button shape and special marking for clear identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for push-button |
Device short name | ZB5 | Bezel material | Black plastic |
Head type | Standard | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | spring return | Operator additional information | Vertical mounting |
CAD overall width | 1.5 in (37 mm) | CAD overall height | 0.7 in (18.5 mm) |
CAD overall depth | 1.5 in (37 mm) | Net Weight | 0.053 lb(US) (0.024 kg) |
Resistance to high pressure washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) | Operator profile | Light blue flush, type H005 white) |
Mechanical durability | 10000000 cycles | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP66 IEC 60529<br />IP69K<br />IP67 |
NEMA degree of protection | NEMA 4 UL 508<br />NEMA 13<br />NEMA 12 | IK degree of protection | IK03 conforming to IEC 62262 |
Standards | UL 508<br />IEC 60947-1<br />CSA C22.2<br />IEC 60947-5-1 | Product Certifications | CSA<br />UL<br />CE |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
