Product Model

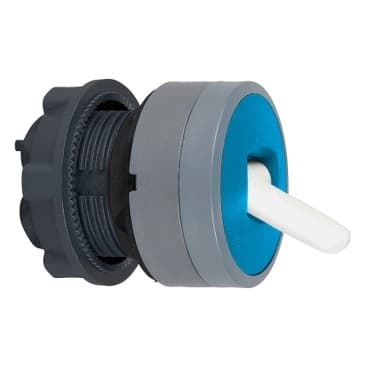

ZB5AD2806C0
Selling Points
- 1Durable Construction: Withstands 500,000 mechanical cycles and is resistant to high-pressure washers.
- 2IP66 Protection: Ensures reliable operation in harsh environments with an IP66 rating.
- 3Easy Installation: Simple mounting and clip-together component system for quick setup.
- 4Versatile Design: Available in blue with a grey bezel, suitable for various applications including lighting.
- 5Comprehensive Certifications: Meets international standards such as UL 508, IEC 60947-5-1, and CSA C22.2 No 14.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for selector switch |
Device short name | ZB5 | Bezel material | Plastic colour plated grey |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Head type | Standard | Shape of signaling unit head | Round |
Type of operator | stay put | Operator profile | Black toggle switch |
Operator additional information | Blue lever | Operator position information | 2 positions 90° |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.8 in (45 mm) | Net Weight | 0.051 lb(US) (0.023 kg) |
Mechanical durability | 500000 cycles | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
Electrical composition code | C11 3 single front mounting<br />C12 6 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C13 6 single and double front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK06 |
Standards | UL 508<br />IEC 60947-5-4<br />JIS C8201-5-1<br />IEC 60947-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />BV<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
