Product Model

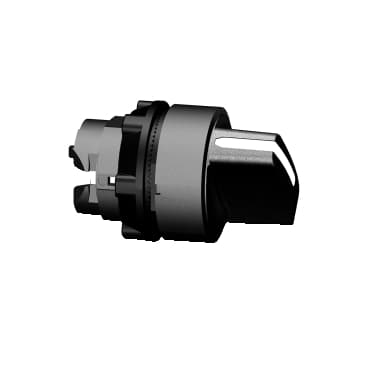

ZB5AD2TQ
Selling Points
- 1Rotary Switch with 2 Positions: The ZB5AD2TQ features a rotary switch with 2 stable positions for precise control.
- 2IP66 Rating: Ensures protection against dust and water, making it suitable for harsh industrial environments.
- 3Black Standard Handle: The black handle provides a durable and easy-to-use interface.
- 422mm Diameter: Compact design fits perfectly in various control stations and panels.
- 5UL Listed and Certified: Meets stringent safety standards with UL listing and additional certifications from BV, LROS, CSA, GL, DNV, and RINA.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for selector switch |
Device short name | ZB5 | Bezel material | Dark grey plastic |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Sale per indivisible quantity | 10 | Shape of signaling unit head | Round |
Type of operator | stay put | Operator profile | Black standard handle |
Operator position information | 2 positions 90° | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.8 in (46 mm) |
Mechanical durability | 1000000 cycles | Station name | XALD 1...5 cut-outs |
Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />IEC 60947-5-1<br />JIS C8201-1 |
Product Certifications | DNV<br />CSA<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
